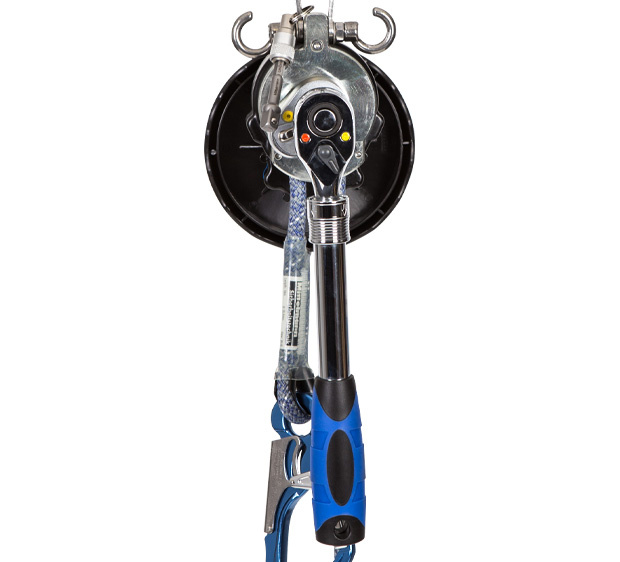

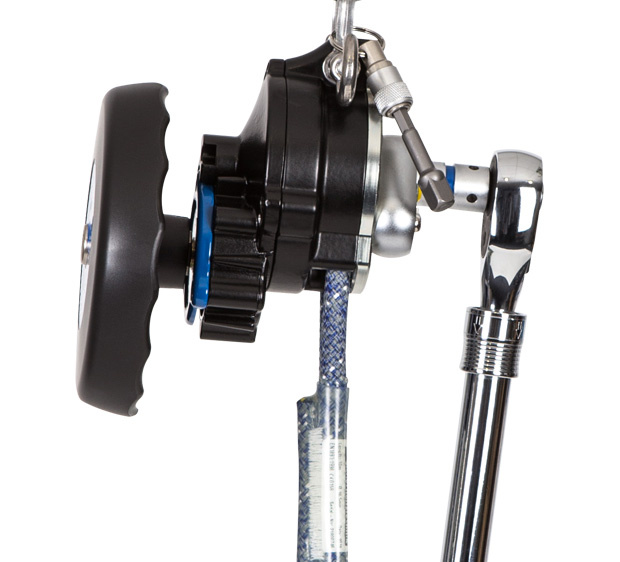

UniDrive

The UniDrive is our most compact working device and the only device on the market that can be operated with any commercially available cordless screwdriver.

The reason for this is the built-in torque limiter, which throws off excessively high loads and therefore causes no danger to people or material.

Features

• AUTOdrive
• RATCHdrive
• TORQUEsafe
• STOPsafe
• SEALsafe
• WHEELsafe

Standard

• EN 341:2011/1A
• EN 341:2011/1B
• EN 1496:2017/ Klasse B
• Machinery Directive 2006/42/EC

Details

• persons: 2
• rope ⌀:  10.5 mm
• descent speed: Ø 1 m/s
• max. descend height: 160 m
• max. nominal descent load: 200 kg
• max. lifting height: 160 m
• max. nominal lifting load: 200 kg
• weight: 3.3 kg
• temperature range: -40 °C bis +60 °C
• Dimensions: H x L x W: 200 x 170 x 150 mm

HS-code

• 84253900

ID-number

• 178309  (with swivel carabiner ANSI/EN)
• 178898  (with swivel carabiner EN)
• 179518  (without carabiner - for tripod-adapter)
