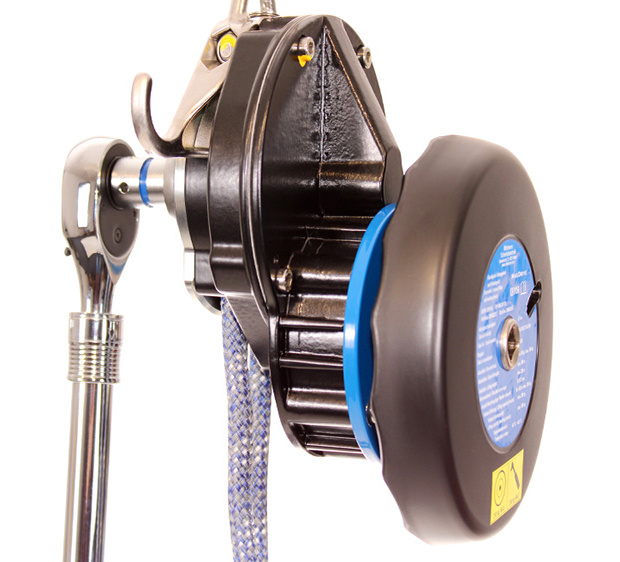

MaxDrive

The MaxDrive working device offers all the advantages of the UniDrive, but goes one better in all aspects. Whether it's the descent height or the maximum working load, the MaxDrive masters every challenge due to its robust design.

Features

• AUTOdrive
• RATCHdrive
• TORQUEsafe
• STOPsafe
• SEALsafe
• WHEELsafe

Standard

• EN 341:2011/1A
• EN 1496:2017/ Klasse B
• Machinery Directive 2006/42/EC

Details

• persons: 2
• rope ⌀:  10.5 mm
• descent speed: Ø 1 m/s
• max. descend height: 300 m
• max. nominal descent load: 280 kg
• max. lifting height: 200 m
• max. nominal lifting load: 280 kg
• weight: 4.0 kg
• temperature range: -40 °C bis +60 °C
• Dimensions: H x L x W: 230 x 190 x 150 mm

HS-code

• 84253900

ID-number

• 180410  (with swivel carabiner ANSI/EN)
• 180400  (with swivel carabiner EN)
• 180411  (without carabiner - for tripod-adapter)
