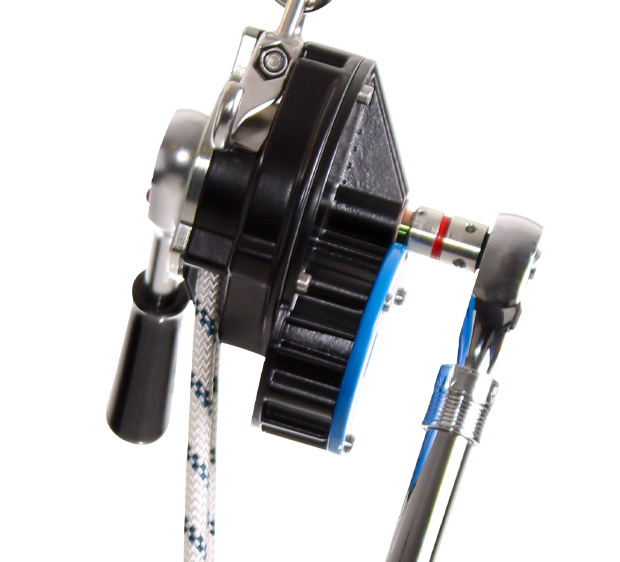

MaxEvac

The MaxEvac is the big brother of the established LiftEvac rescue device, also with direct drive for fast lifting over long distances.

Features

• RATCHdrive
• STOPsafe
• SEALsafe

Standard

• EN 341:2011/1A
• EN 1496:2007/Klasse B
• ANSI/ASSE Z359.4-2013

Details

• persons: 2
• rope ⌀: 9/ 10.5 mm
• descent speed: Ø 1 m/s
• max. descend height: 300 m
• max. nominal descent load: 280 kg
• max. lifting height: 30 m
• max. nominal lifting load: 280 kg
• weight: 3.5 kg
• temperature range: -40 °C bis +60 °C
• Dimensions: H x L x W: 200 x 145 x 125 mm

HS-code

• 84253900

ID-number

• 180130
